Product Overview

SeDTU200 4G LTE Modem

The DTU200 is a multifunctional telemetry terminal that integrates various communication functions, including 4G/NB-IoT, LoRa, and GPS. As an industrial 4G modem, it not only meets data collection requirements in various complex environments but also enables real-time automatic reporting, making it an ideal choice for industrial IoT applications.

Core Functions

Diverse Data Collection Interfaces As an advanced industrial 4G modem, the DTU200 is equipped with a rich array of collection and control interfaces, including RS232, RS485, Ethernet, analog input, digital input, digital output, and relay functions. These interfaces enable the DTU200 to adapt to various complex industrial environments and meet diverse data collection needs.
Powerful Communication Capabilities The core advantage of the DTU200 as an industrial 4G modem lies in its powerful communication capabilities. It supports multiple communication methods, including 4G/NB-IoT and LoRa, ensuring stable and reliable data transmission in various network environments.

Industrial 4G LTE Modem -dtu200

Image Capture Functionality In addition to conventional data collection, the DTU200 supports multi-channel image capture. This feature makes it not just an industrial 4G modem but a comprehensive monitoring device, providing users with more comprehensive on-site information.
Local Storage and Remote Query The DTU200 supports local data storage and remote query functions. As an advanced industrial 4G modem, it can store large amounts of data locally and allows users to perform remote queries at any time, greatly improving the flexibility and efficiency of data management.

Remote Management and Upgrades Leveraging cloud platforms, the DTU200 supports remote management, upgrades, and configuration. This feature simplifies device maintenance, fully embodying the intelligent characteristics of an industrial 4G modem.

Product Parameters

SeDTU200 4G LTE Modem

Hardware Specifications:
SPI·FLASH: 16M
Industrial Serial Interface: 2RS232, 2RS485
Supports RTC and hardware watchdog
Gigabit Ethernet port
4G Module: PCIE interface, USB2.0 signal
Interface Requirements:
4-channel analog input interface (12-bit AD, supports 4-20mA current signal input, optional 0-5V voltage signal input)
2-channel digital input interface (opto-isolated)
2-channel relay output interface
4-channel controlled output power supply
1 tipping bucket rain gauge interface
Other Parameters:
Antenna: Standard SMA female antenna interface, characteristic impedance 50 ohms
SIM card slot: 1 drawer-type SIM card slot, supports 1.8W/3V SIM/UIM card
Indicators: 1 PWR light, 1 SYS light, 1 online light, 3 signal strength lights
Power voltage: DC 5-36V
Operating temperature: -35°C~75°C
Protection level: IP30
Dimensions: 154mm73.6mm27.9mm (excluding antenna mounting accessories)

Product Advantages

Plug and Play, Flexible Networking The DTU200 adopts a design that requires no wiring and supports flexible networking, truly achieving plug-and-play functionality. This feature greatly reduces the complexity of installation and deployment, making the application of industrial 4G modems simpler and more convenient.

Multi-function Integration As an advanced industrial 4G modem, the DTU200 is not just a data transmission device. It integrates multiple functions such as image monitoring, water conservancy data collection, and wireless communication transmission, providing users with a one-stop solution.
Powerful Data Processing Capabilities The DTU200 supports the collection, storage, display, control, alarm, and transmission of various types of data. Whether it's ecological environment monitoring or pollution source monitoring, this industrial 4G modem can handle it all.
High Customizability The DTU200 supports local serial port configuration and upgrades, as well as remote management and configuration. This flexibility allows users to customize the device according to their actual needs, fully leveraging the potential of the industrial 4G modem.
Reliable Hardware Design As an industrial 4G modem, the DTU200 adopts a fanless silent design and has an IP30 protection level. These features ensure reliable operation of the device in harsh environments.

Real-world Application Scenario

Let's look at a case study of the DTU200 in smart water conservancy.

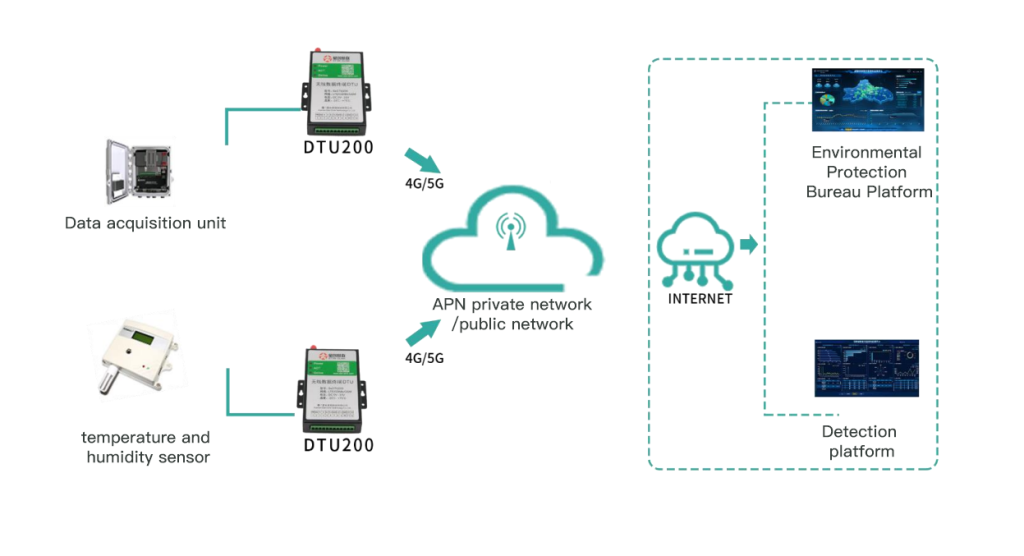

In a river basin management project, the management department needed to monitor the water level, water quality, and surrounding environment of the river in real-time. They chose the DTU200 as the core device, deploying it at multiple monitoring points along the river.

Industrial 4G LTE Modem -dtu200

As an advanced industrial 4G modem, the DTU200 connected water level sensors, water quality analyzers, and cameras through its rich interfaces. It used the 4G network to transmit the collected data to the central management platform in real-time. Meanwhile, the local storage function of the DTU200 ensured that important data would not be lost even in case of network interruptions.
When the water level reached the warning line, the DTU200 would immediately trigger the alarm function, sending warning messages to management personnel through the 4G network. Management personnel could use the remote query function to view real-time images and detailed data, making timely decisions.
This case fully demonstrates the powerful functions and flexible applications of the DTU200 as an industrial 4G modem. It not only achieves real-time data transmission and monitoring but also provides value-added functions such as alarms and remote management, providing strong support for the implementation of smart water conservancy.

As an advanced industrial 4G modem, the DTU200 provides a comprehensive solution for industrial IoT applications with its powerful functions, flexible configuration, and reliable performance. Whether in data collection, transmission, or remote management, the DTU200 demonstrates excellent performance. By choosing the DTU200, you will have an intelligent, efficient, and reliable data transmission assistant, helping your business navigate the waves of the Industry 4.0 era and sail towards success.
