Edge Computing Gateway
The SG800 Edge Computing Gateway represents a significant leap forward in industrial-grade wireless communication technology. Designed to meet the demanding requirements of energy monitoring and management, this advanced Edge Computing Gateway offers unparalleled performance, versatility, and reliability for a wide range of IoT applications.
At its core, the SG800 Edge Computing Gateway is built to bring computational power closer to the data source. This edge computing approach offers several key advantages:
Reduced latency for real-time decision making
Decreased bandwidth usage, lowering operational costs
Enhanced data privacy and security
Improved reliability in environments with intermittent connectivity
By leveraging the SG800 Edge Computing Gateway, businesses can unlock new levels of efficiency and insight in their IoT deployments.

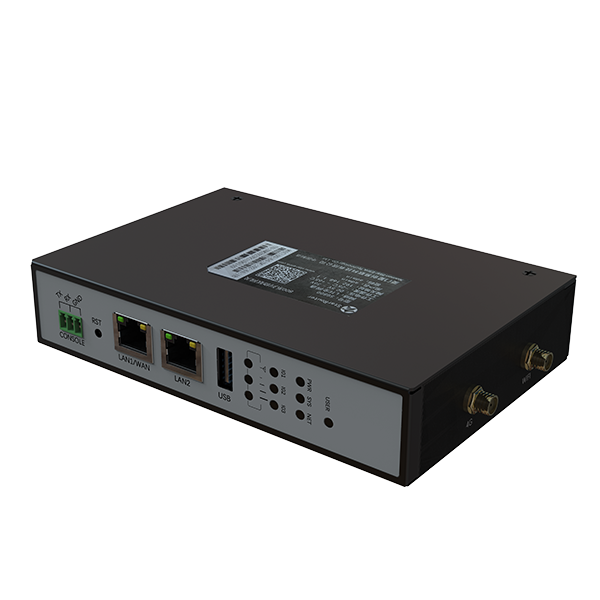

SG800 4G Edge Computing Gateway
The SG800 Edge Computing Gateway offers a wide array of connectivity options to suit various deployment scenarios:
4G LTE support for high-speed cellular connectivity
Wired network backup for enhanced reliability
Optional WLAN support (IEEE 802.11b/g/n)
1 WAN port (can be repurposed as LAN)
1 LAN port (10M/100M/1000M adaptive MDI/MDIX)
This versatility ensures that your Edge Computing Gateway can seamlessly integrate into existing network infrastructures while providing cutting-edge connectivity for future-proof deployments.
The SG800 Edge Computing Gateway is built to last, with impressive hardware specifications:
Memory: 1GB
Storage: 4GB eMMC Flash
SIM Card Support: 1 flip card slot (1.8V/3V SIM/UIM cards)
USB Interface: 1 USB 2.0 port
Console Port: 1 RS232 port
CAN Interfaces: 2
RS485 Interfaces: 2 (independently isolated, one can be used as RS232)
Power Output: 1 channel 12V
The SG800 Edge Computing Gateway is engineered to withstand challenging conditions:
Operating temperature range: -35°C to 75°C (-31°F to 167°F)
Storage temperature range: -40°C to 85°C (-40°F to 185°F)
Humidity tolerance: 5% to 95% (non-condensing)
All-metal enclosure with IP30 protection rating
Natural heat dissipation for silent operation
This rugged design makes the SG800 an ideal Edge Computing Gateway for outdoor installations, factory floors, and other demanding environments.
SG800 4G Edge Computing Gateway
Security is paramount in edge computing applications, and the SG800 Edge Computing Gateway delivers:
Full-state packet inspection (SPI)
Denial of Service (DoS) attack prevention
Access Control Lists (ACL)
URL filtering
IPsec VPN, L2TP, PPTP, GRE, OpenVPN, and CA certificate support
Power reverse protection, overvoltage protection, and overcurrent protection
Built-in electromagnetic isolation and ESD protection for various interfaces
The SG800 Edge Computing Gateway runs on Linux or Ubuntu 16.04, providing a solid foundation for various applications:
Support for multiple industrial protocols, including MQTT and Modbus
Integrated DTU functionality with various transmission modes
QoS management for bandwidth control
SNMP v1/v2/v3 support for network management
Traffic management with threshold setting and alerts
Deploying and managing the SG800 Edge Computing Gateway is straightforward:
DIN rail and desktop installation options
Support for telnet, web, SSH, and console configuration methods
Web upgrade and FOTA (Firmware Over-The-Air) support
Compatibility with the Star Device Manager (Star Cloud) platform for centralized management
Built-in watchdog for device self-checking and fault self-repair
As a key component in energy management systems, the SG800 Edge Computing Gateway excels in:
Collecting energy data from charging stations, factories, office buildings, and shopping malls
Enabling data analysis for operational management and energy conservation
Supporting environmental protection protocols for compliance with regulations
The versatility and power of the SG800 make it suitable for a wide range of applications:
Smart Grid Management: Deploy the Edge Computing Gateway for real-time monitoring and control of power distribution networks.
Industrial IoT: Use the gateway for predictive maintenance, quality control, and process optimization in manufacturing environments.
Smart Buildings: Leverage the energy monitoring capabilities for efficient HVAC control and lighting management.
Renewable Energy: Monitor and optimize solar panel and wind turbine performance with edge computing capabilities.
Electric Vehicle Charging Infrastructure: Manage charging stations and analyze usage patterns for improved service delivery.
4G Edge Computing Gateway
Versatility: From its multiple connectivity options to its support for various industrial protocols, this Edge Computing Gateway adapts to your needs.
Reliability: Industrial-grade design and high MTBF (Mean Time Between Failures) of ≥100,000 hours ensure consistent performance in challenging environments.
Edge Intelligence: Process data locally, reducing latency and bandwidth requirements while enhancing privacy and security.
Scalability: Cloud-enabled management makes it easy to deploy and maintain large networks of SG800 Edge Computing Gateways.
Future-Proof Technology: With 4G support and powerful edge computing capabilities, the SG800 is ready for the next generation of IoT applications.
Dimensions: 126mm x 44mm x 166mm (L x W x H, excluding antenna and installation components)
Weight: 0.67kg (net, excluding antenna and installation components)
Power Supply: External Power Adapter (12V · 2A)
Operating Voltage: DC 12V
Power Consumption: 300-500mA@12V DC (standby), 500-700mA@12V DC (operating)
Certifications: Compliant with CCC, RoHS
The SG800 Edge Computing Gateway represents a significant advancement in industrial IoT technology. By combining robust hardware, versatile connectivity options, and powerful edge computing capabilities, this gateway opens up new possibilities for smart energy management, industrial automation, and beyond.
| Hardware Performance | ||
| Memory | 1GB | |
| FLASH | 4GB EMMC | |
| WIFI (optional) | 802.11b/g/n | |
| Network Support | Supports seven-mode full-network access (4G) | |
| System Time | NTP technology for time synchronization, with built-in RTC | |
| Interfaces | ||
| WAN port | 1 WAN port, can be reused as LAN | |
| LAN port | 1 (10M/100M/1000M adaptive MDI/MDIX port) | |
| SIM card interface | 1 (flip card slot, supports 1.8V/3V SIM/UIM cards) | |
| USB interface | 1*USB2.0 | |
| Reset | 1 (reset button) | |
| Antenna interfaces | 1 (4G, impedance 50 ohms, SMA female inner hole interface) | |
| 1 (2.4G antenna, impedance 50 ohms, SMA male inner pin interface) | ||
| Power terminal | 1 (2-pin 3.81mm spacing connector) | |
| Console port | 1 , RS232 | |
| CAN | 2 pcs | |
| RS485 | 2*RS485, independent isolation, one of which can be reused as RS232 | |
| Power output | 1 channel 12V | |
| Indicators | 9, including 1 PWR light, 1 SYS light, 1 GPS light, 3 signal strength lights, SIM1, SIM2, and TF indicators | |
| Power Characteristics | ||
| power | External Power Adapter (12V·2A) | |
| Operating voltage | DC 12V | |
| Standby power consumption | 300~500 mA@12V DC | |
| Operating power consumption | 500~700 mA@12V DC | |
| Operating Conditions | ||
| Operating temperature | -35～+75ºC（-31～+167℉） | |
| Storage temperature | -40~+85℃（-40～+185℉） | |
| Operating humidity | 5%~95% (non-condensing) | |
| Equipment ventilation | Natural heat dissipation, no noise | |
| Physical Characteristics | ||
| Enclosure | All-metal enclosure | |
| Dimensions | Length*Width*Height: 126*44*166mm (excluding antenna and installation components) | |
| Installation methods | Desktop, DIN rail, wall-mounted | |
| weight | Net weight: 0.67KG (excluding antenna and installation components) | |
| Gross weight: 0.95KG (with accessories and packaging box) | ||
| Device Safety and Reliability | ||
| Safety and reliability | Power reverse protection, overvoltage protection, overcurrent protection; Ethernet interface built-in 1.5KV electromagnetic isolation protection; RS232/RS485 interface built-in 15KV ESD protection; SIM/UIM card interface built-in 15KV ESD protection | |
| Protection level | IP30 | |
| Certification | Compliant with CCC, RoHS | |
| MTBF | ≥ 100,000 hours | |
| Software features | linux system | |
| Network access | Supports APN VPDN | |
| Access authentication | Supports CHAP/PAP authentication | |
| Network modes | GSM/GPRS/EDGE, LIMTS/HSPA+/EVDO, TD-SCDMA/TD-LTE/FDD LTE/5G NR | |
| LAN protocol | Support ARP, Ethernet | |
| WAN protocol | Supports static IP, DHCP, PPPoE, PPP | |
| IP applications | Supports Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet | |
| IP routing | Supports routing | |
| NAT function | Supports network address translation | |
| Industrial protocols | Supports environmental protection 212 protocol, supports MQTT, MUDBUS, and other industrial protocols | |
| Network Security | ||
| Firewall | Full-state packet inspection (SPI), prevent denial of service (DoS) attacks, filter multicast Ping packets, access control lists (ACL), URL filtering, port mapping, virtual IP mapping, IP-MAC binding | |
| Data Security | IPsec VPN/L2TP/PPTP/GRE /OPEN VPN/CA certificate | |
| Reliability | ||
| Backup function | Supports wired and wireless backup | |
| Online link detection | Sends heartbeat packets for detection and automatically reconnects when disconnected | |
| Built-in watchdog | Device self-checking technology, device fault self-repair | |
| WLAN (optional) | ||
| Protocol standards | IEEE 802.11b/g/n | |
| Rate | Up to 144Mbps | |
| Safety features | Open system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption | |
| Operating modes | AP, Client operating modes | |
| Transmission distance | 100m (actual transmission distance depends on the environment) | |
| Intelligent Features | ||
| Integrated DTU function | Supports TCP, UDP transparent transmission mode, TCP Server mode, supports Modbus RTU to Modbus TCP bridge, supports DCUDP, DCTCP mode | |
| Network Management | ||
| QoS management | Supports bandwidth limitation, IP throttling | |
| Configuration methods | Supports telnet, web, SSH, and console configuration methods | |
| Upgrade methods | Supports web upgrade, FOTA | |
| Logging functionality | Supports local system logs, remote logs, serial port output logs | |
| Network management functionality | Supports batch management on the Star Device Manager (Star Cloud) platform | |
| Simple network management functionality | Supports SNMP v1/v2/v3, supports SNMP TRAP function | |
| Traffic management | Supports traffic threshold setting, traffic statistics, and traffic alert functionality | |
| Maintenance Tools | Ping, route tracing | |
| Status Inquiry | System status, modem status, network connection status, route status | |

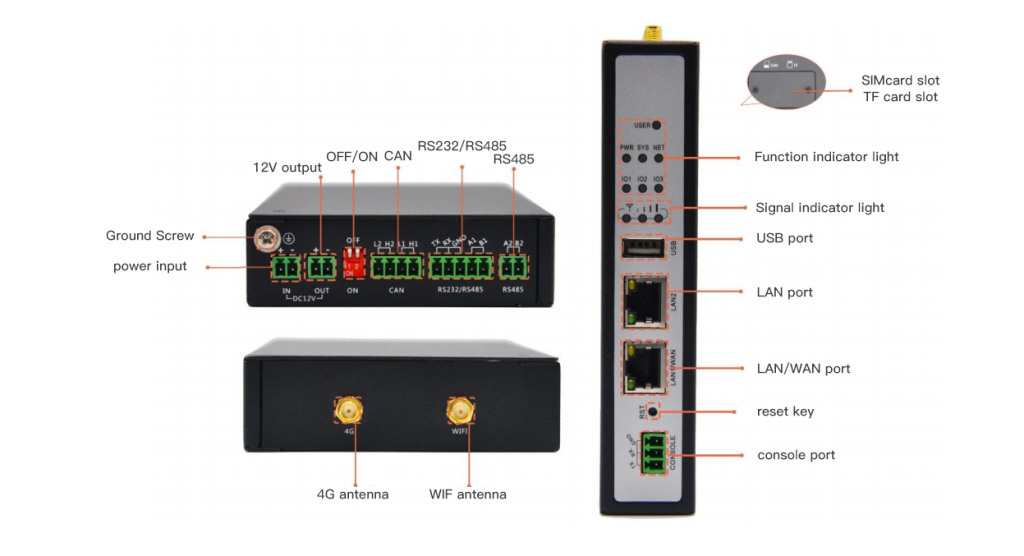

Product Interfaces
SG800 4G Edge Computing Gateway
Product Dimensions
SG800 4G Edge Computing Gateway
