In today's rapidly evolving industrial landscape, the need for robust and reliable network infrastructure has never been more critical. Enter the SW105G, a cutting-edge industrial ethernet switch designed to meet the demanding requirements of modern industrial environments. This powerful device is set to transform the way businesses approach network connectivity in challenging settings.

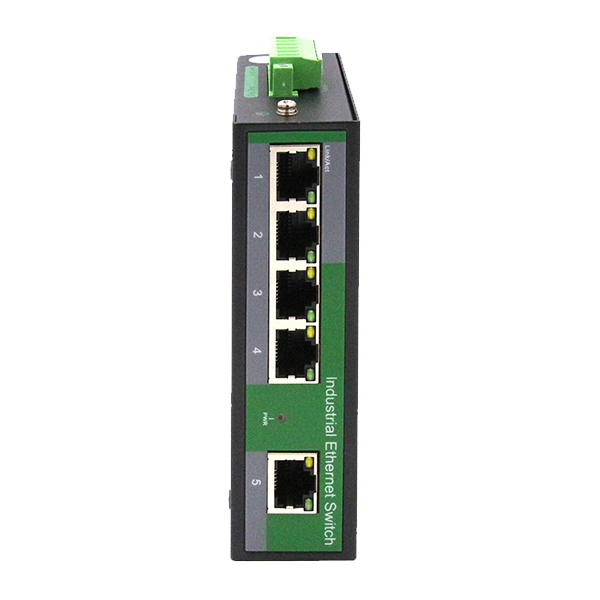

industrial ethernet switch SW005F
The SW105G industrial ethernet switch boasts an impressive array of features that set it apart from conventional networking solutions. With its 1 Gigabit Ethernet uplink port and 4 Gigabit Ethernet downlink ports, this industrial ethernet switch offers unparalleled flexibility and performance. The device supports 10/100/1000Base-TX connections, ensuring compatibility with a wide range of network devices and protocols.
One of the standout features of this industrial ethernet switch is its ability to operate in extreme conditions. With an operating temperature range of -40°C to 75°C, the SW105G is built to withstand the harshest industrial environments. Its compact size and rail mounting capabilities make it ideal for installation in tight spaces, while the IP40 protection level ensures durability and reliability in dusty or challenging settings.
The SW105G industrial ethernet switch is equipped with state-of-the-art networking features to enhance performance and reliability. It supports full-duplex and half-duplex modes with auto-negotiation capability, ensuring optimal data transmission in various network configurations. The built-in storage and forwarding mechanism, along with support for multiple protocols, makes this industrial ethernet switch a versatile solution for complex industrial networks.

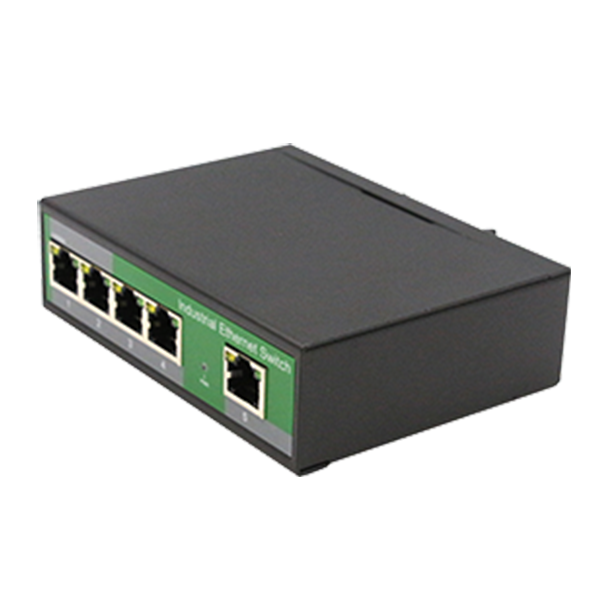

industrial ethernet switch SW005F
Power reliability is crucial in industrial settings, and the SW105G industrial ethernet switch delivers on this front. With a wide input voltage range of DC12~52V and built-in reverse connection protection, this device ensures consistent performance even in unstable power environments. The dual power redundancy feature further enhances reliability, making it an ideal choice for critical industrial applications.
Designed with user-friendliness in mind, this industrial ethernet switch offers plug-and-play functionality, simplifying installation and configuration processes. The device features LED indicators for power and port status, allowing for quick troubleshooting and monitoring. Its compatibility with various industry standards, including FCC, CE, and ROHS, ensures seamless integration into existing industrial networks.
The SW105G industrial ethernet switch opens up new possibilities for industrial networking. Its high-performance capabilities make it suitable for a wide range of applications, including:
Factory automation systems
Smart manufacturing facilities
Industrial IoT deployments
Transportation and traffic management systems
Oil and gas production facilities
Power generation and distribution networks
5 RJ45 ports (10/100/1000BaseT(X) auto detection)
Store-and-forward transmission mode
2K MAC address capacity
14Gbps backplane bandwidth
Low power consumption (＜3W)
Compliance with multiple industry standards (FCC, CE, ROHS)
MTBF ≥300000 hours

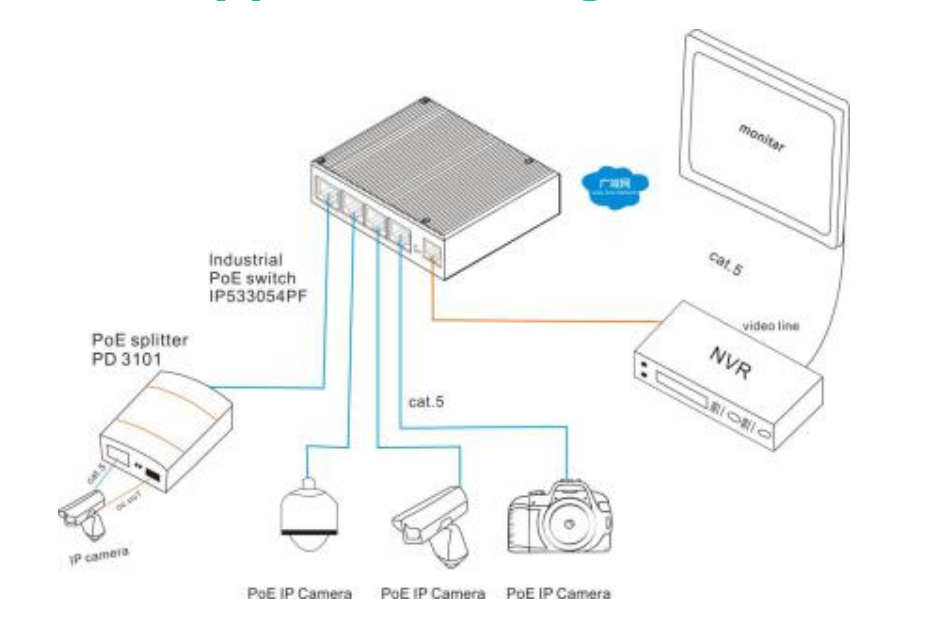

Product Application Diagram
As industries continue to evolve and embrace digital transformation, the role of robust networking solutions becomes increasingly vital. The SW105G industrial ethernet switch represents the future of industrial networking, offering a perfect blend of performance, reliability, and versatility. Whether you're upgrading existing infrastructure or building new industrial networks from the ground up, this industrial ethernet switch is poised to become an indispensable component of your connectivity strategy.
The SW105G industrial ethernet switch is more than just a networking device; it's a catalyst for industrial innovation. By providing reliable, high-speed connectivity in even the most challenging environments, this industrial ethernet switch empowers businesses to push the boundaries of what's possible in industrial automation, IoT, and smart manufacturing. As we move towards an increasingly connected industrial future, the SW105G stands ready to meet the evolving needs of modern industries, ensuring that your network infrastructure is always one step ahead.
| Interfaces | ||
| Gigabit Ethernet Ports | 5 RJ45 ports (10/100/1000BaseT(X) auto detection, full/half duplex MDI/MDI-X adaptive) | |
| Power Interface | Phoenix terminal | |
| Indicators | Power indicator (PWR), port indicator (Link) | |
| Functional Features | ||
| Transmission Mode | Store-and-forward | |
| MAC Addresses | 2K | |
| Cache | 1.2Mbit | |
| Backplane Bandwidth | 14Gbps | |
| Switching Delay | ＜10μs | |
| Power Consumption | ＜3W | |
| Network Protocols | 10Base-T (IEEE 802.3)
100Base-T (IEEE 802.3u) 1000Base-T(IEEE 802.3ab) Flow control (IEEE 802.3x) |
|
| Industry Standards | EMI ：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS: IEC(EN)61000-4-2(ESD) :±6kV接触放电,±8kV空气放电 IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT) : 网口 : ±2kV CM//±1kV DM ; IEC(EN)61000-4-5(Surge) : 网口 : ±2kV CM//±1kV DM ; IEC(EN)61000-4-6(射频传导) : 3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(共模传导) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock ：IEC 60068-2-27 Freefall ：IEC 60068-2-32 Vibration ：IEC 60068-2-6 |
|
| Power Characteristics | ||
| nput Voltage | DC12~52V(dual power redundancy) | |
| Access Terminal | Phoenix terminal | |
| Power Protection | Supports dual power redundancy, built-in overcurrent protection (4.0A), reverse connection protection | |
| Operating Conditions | ||
| Operating Temperature | -40~+75℃（-40~+167℉） | |
| Storage Temperature | -40~+75℃（-40~+167℉） | |
| Operating Humidity | 5%~95%( non-condensing) | |
| Physical Characteristics | ||
| Dimensions | Length*Width*Height:117.7x88.7x34mm | |
| Installation Method | DIN rail mounting, wall mounting | |
| Weight | 0.36KG (excluding antenna and mounting components) | |
| Device Safety and Reliability | ||
| Protection Level and Casing | IP40, metal casing | |
| Certification | Compliant with FCC, CE, ROHS standards | |
| MTBF | ≥300000 hours
|
|

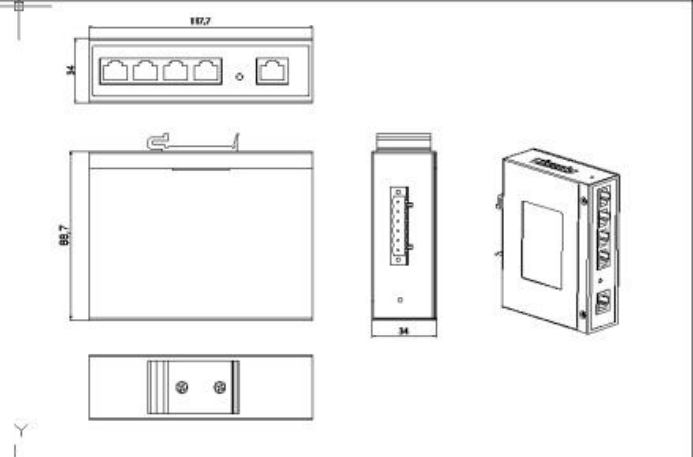

Product Dimensions
