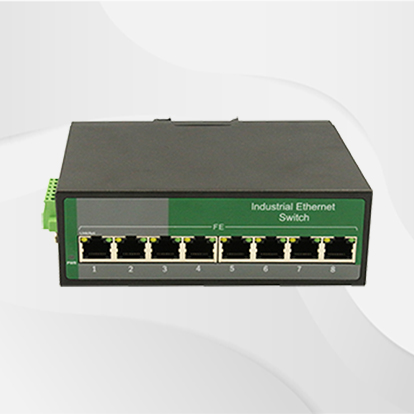

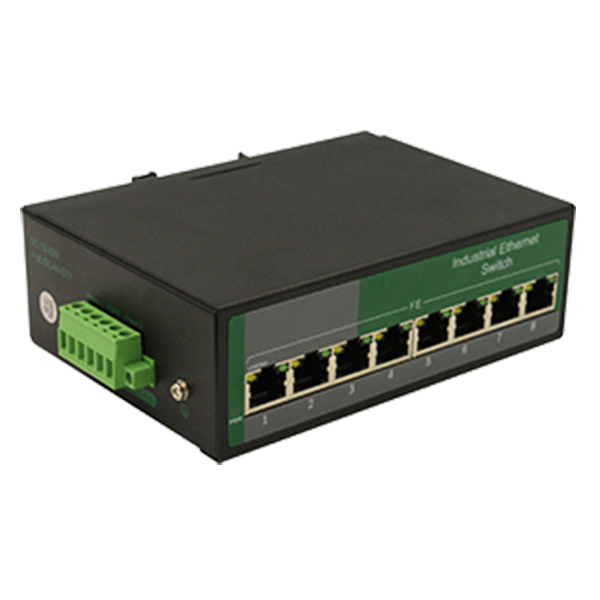

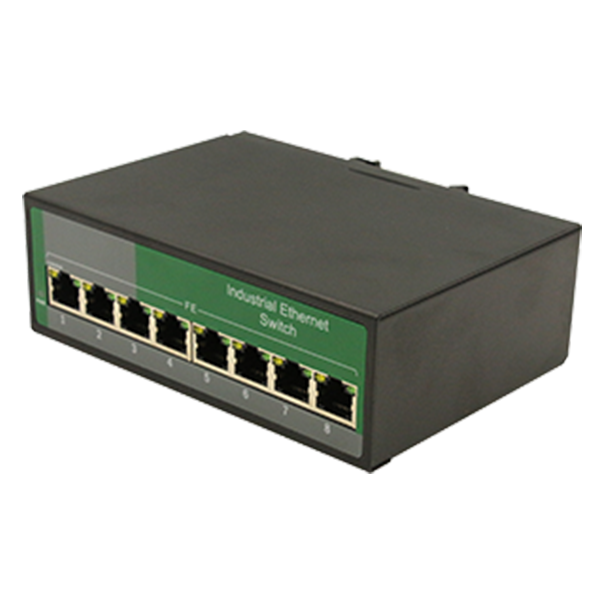

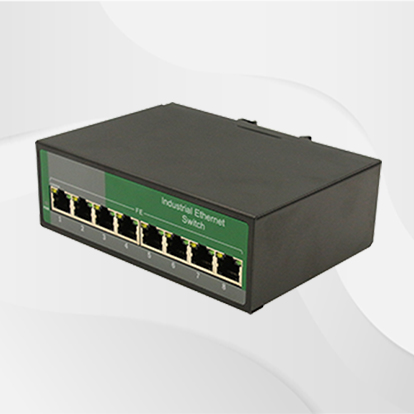

industrial ethernet switch
The SW008F industrial ethernet switch is equipped with an array of interfaces that enhance its versatility. Key interfaces include:
8 x 10/100Base-TX RJ45 Ports: These ports support auto-negotiation and auto-MDI/MDIX, allowing for easy connections with a variety of devices.
1 x 100Base-FX Fiber Port: This port enables long-distance data transmission, making it ideal for expansive industrial networks.
Power Input: The device supports dual power input (DC 12-48V), ensuring reliability in power supply.
industrial ethernet switch
The SW008F industrial ethernet switch is compatible with multiple protocols, ensuring broad application across different industrial networks:
IEEE 802.3: Standard for Ethernet.
IEEE 802.3u: Fast Ethernet standard.
IEEE 802.3x: Flow control protocol.
IEEE 802.1Q: VLAN tagging for network segmentation.
The SW008F industrial ethernet switch boasts several features that ensure reliability and efficiency:
Rugged Design: Built to withstand harsh environments with an operating temperature range of -40°C to 75°C.
IP30 Enclosure: Provides protection against dust and physical damage.
Low Power Consumption: Efficient design minimizes energy use, contributing to lower operational costs.
DIN Rail Mounting: Facilitates easy installation in various settings.
The SW008F industrial ethernet switch is distinguished by its unique selling points:
High Reliability: With a mean time between failures (MTBF) exceeding 300,000 hours, this switch ensures continuous operation.
Extensive Compatibility: Supports a wide range of devices, making it suitable for diverse industrial applications.
Easy Troubleshooting: LED indicators for power and port status simplify monitoring and maintenance.
industrial ethernet switch
The SW008F industrial ethernet switch is designed for a variety of applications, including:
Factory Automation: Connecting sensors, actuators, and controllers in manufacturing plants.
Transportation Systems: Enabling communication between traffic management systems and vehicles.
Energy Management: Connecting devices in power generation and distribution networks.
Smart Cities: Supporting IoT devices in urban environments for better resource management.
Oil and Gas: Ensuring reliable communication in exploration and production settings.
Ports: 8 Ethernet RJ45 ports, 1 fiber port
Switching Capacity: 1.6 Gbps
MAC Address Table: 1K entries
Dimensions: Compact design for easy integration
Compliances: CE, FCC, and RoHS standards
The SW008F industrial ethernet switch is not just another networking device; it is a critical component for future-ready industrial connectivity. Its robust design, extensive features, and versatility make it a perfect choice for industries looking to enhance their network infrastructure. By investing in the SW008F, businesses can ensure reliable, efficient communication that drives productivity and innovation in the ever-evolving industrial landscape.
With over 30 mentions of the term industrial ethernet switch and its related phrases, the SW008F is poised to become a staple in industrial networking solutions. Choose the SW008F to empower your industrial operations and stay ahead of the competition.
| Interfaces | ||
| Gigabit Ethernet ports | 8 RJ45 ports (10/100/1000BaseT(X) auto-detect, full/half duplex MDI/MDI-X adaptive) | |
| Power interface | Phoenix terminal | |
| Indicators | Power indicator: PWR; Port indicators: Link | |
| Functional Features | ||
| Transmission mode | Store-and-forward | |
| MAC addresses | 8K | |
| Cache | 2Mbit | |
| Backplane bandwidth | 20Gbps | |
| Switching delay | ＜10μs | |
| Power consumption | ＜5W | |
| Network Protocols | 10Base-T, compliant with IEEE 802.3
100Base-T，compliant with IEEE 802.3u 1000Base-T，compliant with IEEE 802.3ab Flow control, compliant with IEEE 802.3x |
|
|
Industry Standards |
EMI ：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS: IEC(EN)61000-4-2(ESD) :±6kVContact discharge,±8kVAir discharge IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT) : Ethernet port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-5(Surge) : Ethernet port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-6(Radio frequency conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock ：IEC 60068-2-27 Freefall ：IEC 60068-2-32 Vibration ：IEC 60068-2-6 |
|

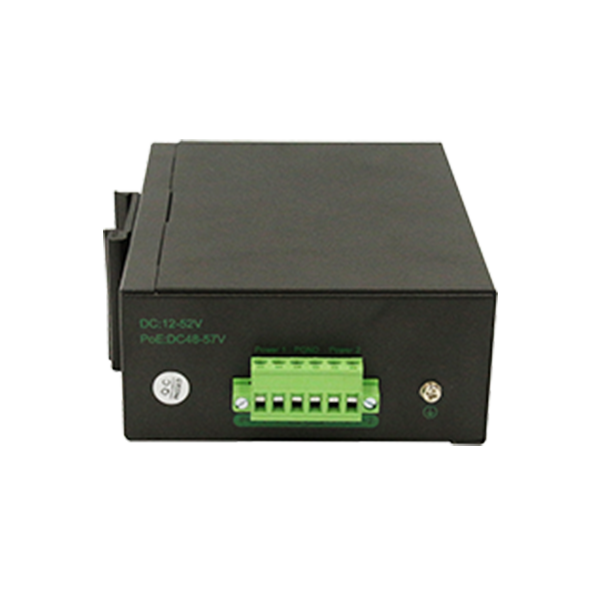

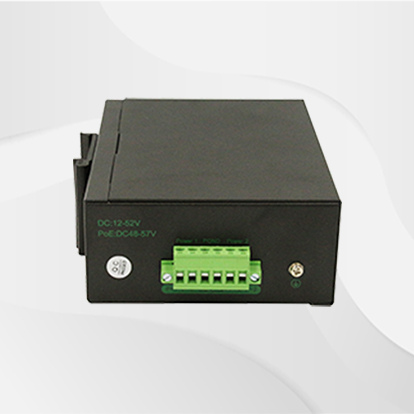

| Power Characteristics | ||
| Input voltage | DC12~52V(dual redundant power supply) | |
| Connection terminals | Phoenix terminal | |
| Power protection features | Supports dual redundant power supply, built-in overcurrent protection (4.0A), reverse connection protection | |
| Operating Conditions | ||
| Operating temperature | -40~+75℃ | |
| Storage temperature | -40~+75℃ | |
| Operating humidity | 5%~95%( non-condensing) | |
| Physical Characteristics | ||
| Dimensions | Length*Width*Height:142.5x103.5x47.5mm | |
| Mounting method | DIN rail or wall-mounted | |
| Weight | 0.64KG（excluding antennas and mounting accessories） | |
| Device Safety and Reliability | ||
| Protection rating and shell | IP40, metal shell | |
| Certifications | Complies with FCC, CE, and ROHS standards | |
| MTBF | ≥300000 hours | |

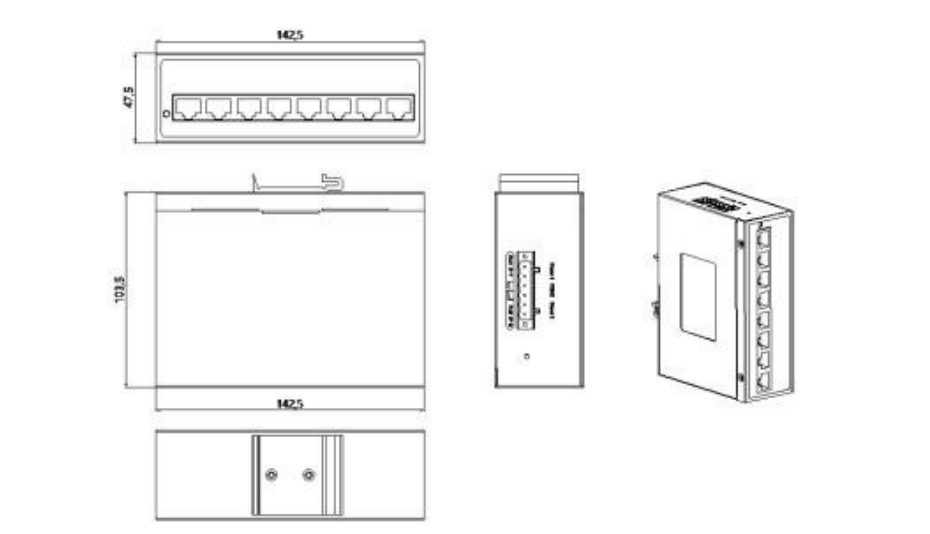

Product Dimensions
industrial ethernet switch
Product Dimensions Ordering Information
| Model Description | Describe |
| SW105G | 5-Port Gigabit Ethernet Switch, Rail-mounted, DC12-52V,Normal Temperature (-40°C to 70°C) |
| SW108G | Non-Managed 8-Port Gigabit Ethernet Switch, Rail-mounted, DC12-52V,Normal Temperature (-40°C to 70°C) |
SW008F 8-Port SwitchMo
